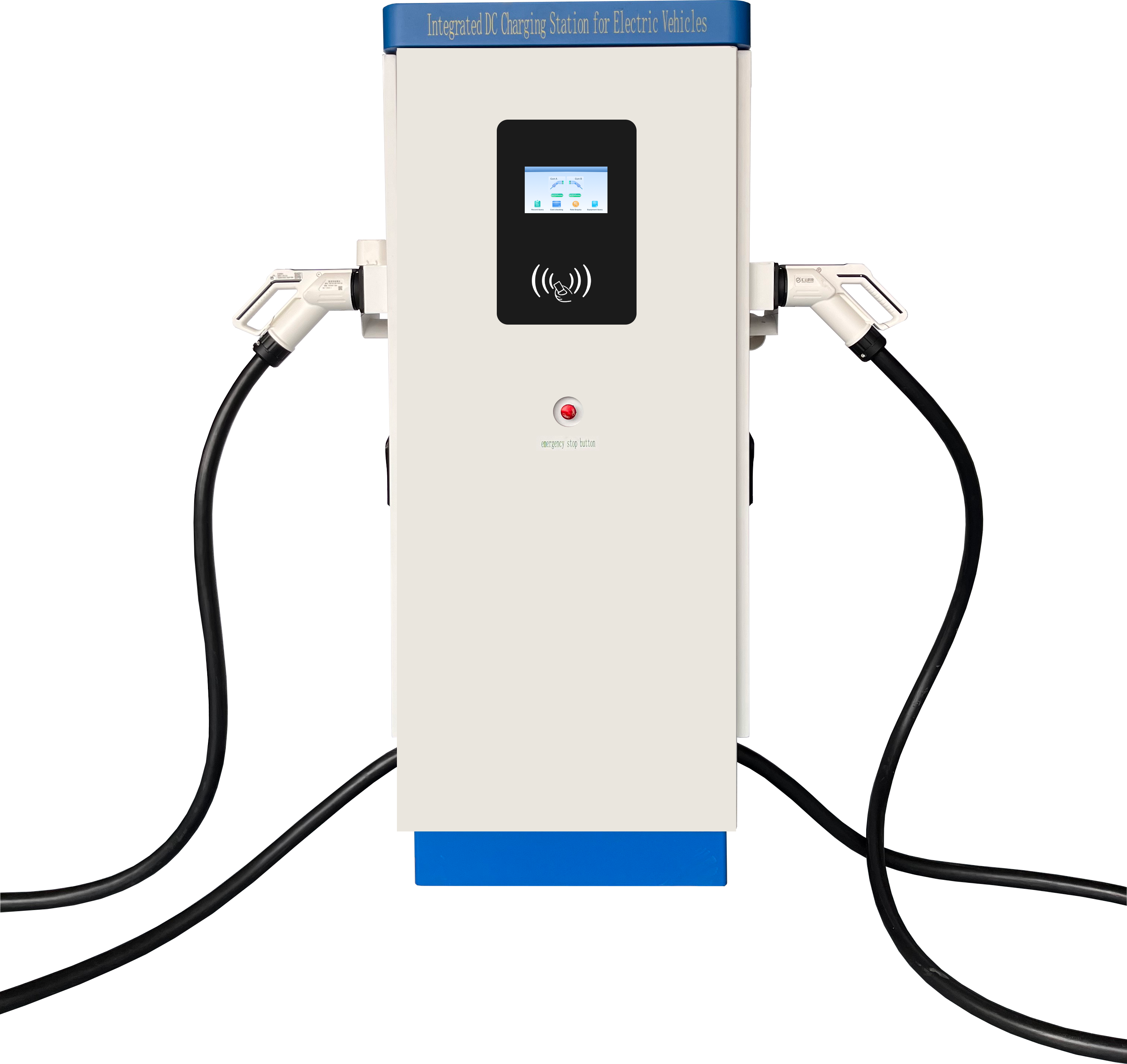

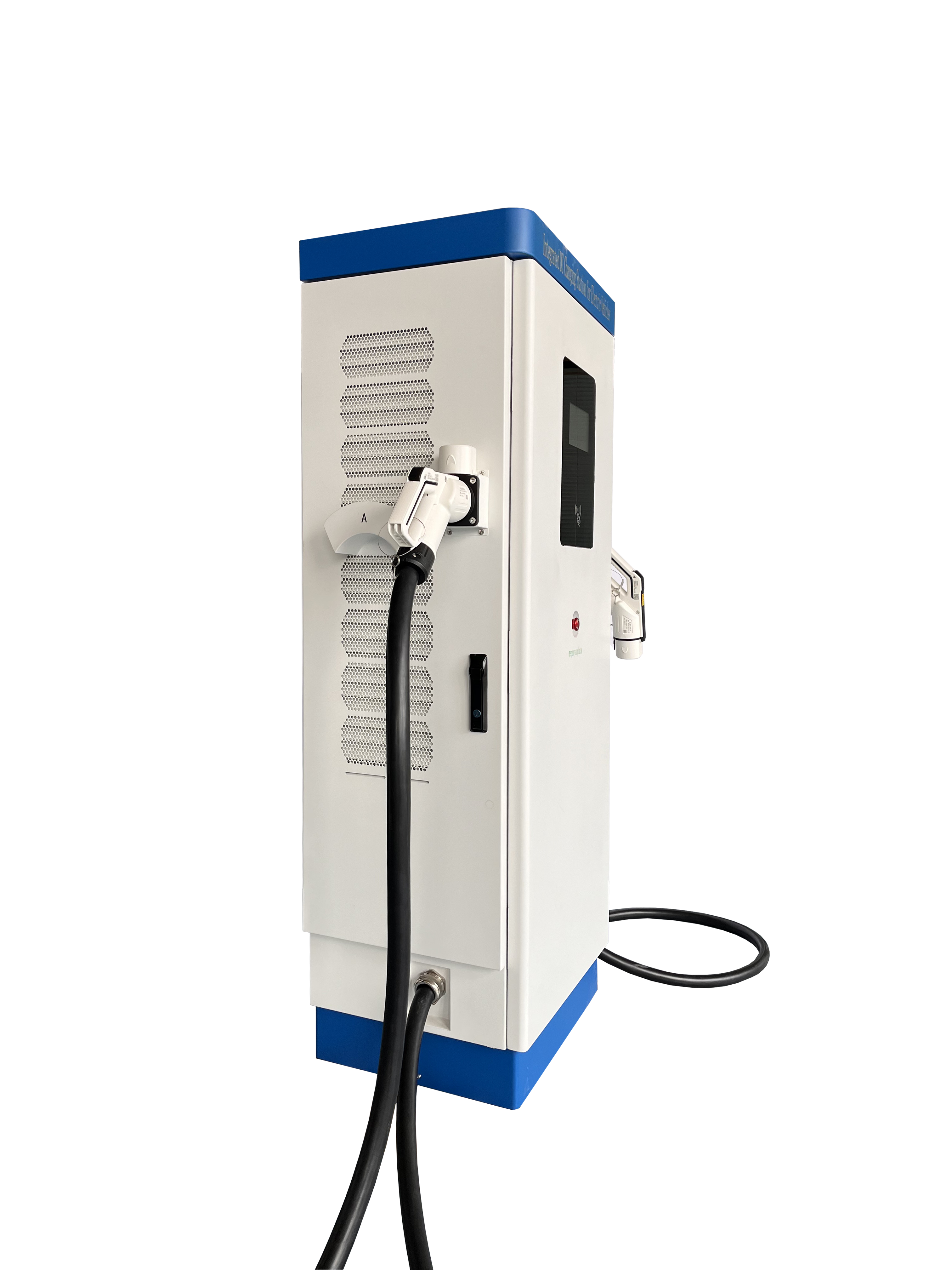

DC Fast Charger Specification — Model DC-Velonix001

1) Product Overview

Model:DC-Velonix001

Type: DC Fast Charger
Connector Standard: GB/T/ CCS1/CCS2
Charging Guns: Dual output (2 guns)
Application: Commercial/public charging, fleet depots, parking facilities, highways/service areas, and industrial sites.

2) Electrical Specifications

• Rated Output Power: 60 kW-180KW

• Input Voltage: AC 380 V ±15%

• Input Frequency: 45–65 Hz

• Output Voltage Range: 200–750 V DC

• Max Output Current: 250 A per gun

3) User Interface & Operation

• Display: 7-inch color LCD

• Start / Authorization Modes:

• Plug & Play

• Password

• RFID Card

• Mobile App

4) Connectivity & Protocols

• Communication: Wi-Fi / Ethernet / 3G / 4G

• Backend Protocol: OCPP 1.6J

5) Mechanical & Installation

• Cable Length: 5 /7meters (per gun)

• Cooling Method: Fan cooling system

6) Environmental & Protection

• Operating Temperature: -25°C to +70°C

• Protection Grade: IP54

• Overall Efficiency: ≥95%

7) Warranty

• Warranty Period: 3 years
